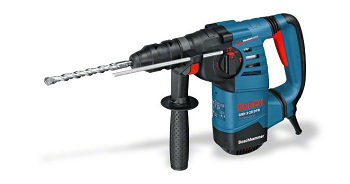

The Bosch GBH 3 SDS Hammer Drill offers a high drilling rate and 20% higher chiseling performance than other rotary hammers in its class.
Contact Us

The Bosch GBH 3 SDS Hammer Drill offers a high drilling rate and 20% higher chiseling performance than other rotary hammers in its class.

Additional Information

Features:

  • High drilling rate and 20% higher chiselling performance than other rotary hammers in its class
  • Low vibration (only 13 m/s²) for more comfortable working due to Bosch Vibration Control
  • Quick-change chuck for fast changes between drilling with impact in concrete and drilling without impact in wood and metal
  • Balanced weight distribution due to L-shaped design for more comfortable working
  • Rotation stop for chiselling
  • Ball grommet for preventing cable breaks
  • Rotating brush plate for equal power in forward and reverse rotation
  • Impact stop for drilling in wood and metal

Specification:

  • Rated power input 800 W
  • Max. impact energy 3,1 J
  • Impact rate at rated speed 0 – 4.000 bpm
  • Rated speed 0 – 900 rpm
  • Weight 3,6 kg
  • Length 354 mm
  • Height 233 mm
  • Bit holder SDS-plus
  • Drilling diameter in concrete with hammer drill bits 4 – 28 mm
  • Optimum range of applications in concrete with hammer drill bits 12 – 18 mm
  • Max. drilling diameter in masonry with core cutters 82 mm
  • Max. drilling diameter in steel 13 mm
  • Max. drilling diameter in wood 30 mm

Noise/vibration information – Measured values determined according to EN 60745.

Total vibration values (vector sum of three directions)

Chiselling – Vibration emission value ah 9.5 m/s²

Uncertainty K 1.5 m/s²

Hammer drilling in concrete – Vibration emission value ah 13.0 m/s²

Uncertainty K 2.0 m/s²

,
