Mapress Copper Kit 1 15-35MM

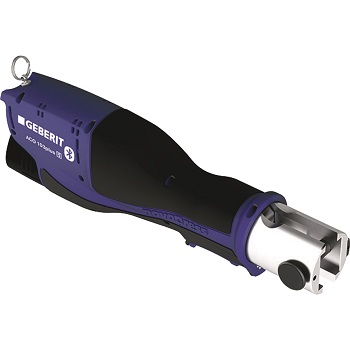

This kit comprises of a Novopress Cordless Mini Press tool (ACO103) complete with 15-35mm jaws suitable for Geberit copper press fittings.
- Suitable for use on Geberit Mapress Press Fittings
- Powerful Lithium-Ion batteries
- Illumination of the press area
- Automatic pressing cycle
- One-hand operation
- Status indication with LED display
- Electronic bolt retention
- Analysis of the pressing tool performance via NovoCheck app
Dimensions metal pipe up to 35 mm Dimensions plastic pipe up to 40 mm Weight (incl. battery) 1,7 kg Length 320 mm Width 98 mm Height 72 mm Power consumption 240 W Piston force 19 kN Piston stroke 30 mm Battery 12V Li-Ion 1,5 / 3,0 Ah Battery capacity 1) 40-180 Press cycles Charging time 2) approx. 30 / 60 min.
- 1 x ACO103 Tool
- 2 x 1.5 Ah batteries
- 1 x 240v Charger
- 15, 18 (Optional), 22, 28, 35mm M profile jaws
- Carry case
All our Novopress tools are calibrated using an 8790 presure tester and our jaws are inspected with an 31465 optical laser test rig in accordance with the manufacturers instructions.
