Mapress Copper Kit 2 15-35MM

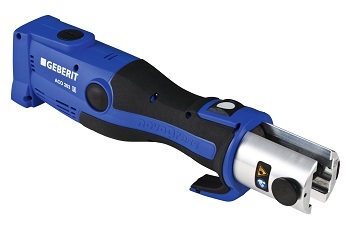

This kit comprises of a Novopress cordless press tool (ACO203) complete with 15-35mm jaws suitable for Geberit copper press fittings.
Features:
-
- Suitable for use on Geberit Mapress Press Fittings
- Low weight
- Illumination of the press area
- No limitation of the pressing cycles within the 2-year maintenance interval
- Faster pressing cycles thanks to the Brushless Motor Technology
- up to 40 % more pressings per battery charge
- Analysis of the pressing tool performance via NovoCheck app
Specification:
-
-
- Weight incl. battery: 2.8 kg
- Length: 387 mm
- Width: 75 mm
- Height: 111 mm
- Power consumption: 450 W
- Piston force: 32 kN
- Piston stroke: 40 mm
- Battery: 18 V Li-Ion / 3.0 Ah
- Battery capacity: up to 160 press cycles per battery
- Charging time: approx. 30 – 60 min.
-
-
-
- 1 x ACO203 Tool
- 2 x 3.0 Ah batteries
- 1 x 240v Charger
- 15, 18 (Optional) , 22, 28, 35mm M profile jaws
- Carry case
-
Please Note:
All our Novopress tools are calibrated using an 8790 presure tester and our jaws are inspected with an 31465 optical laser test rig in accordance with the manufacturers instructions.
