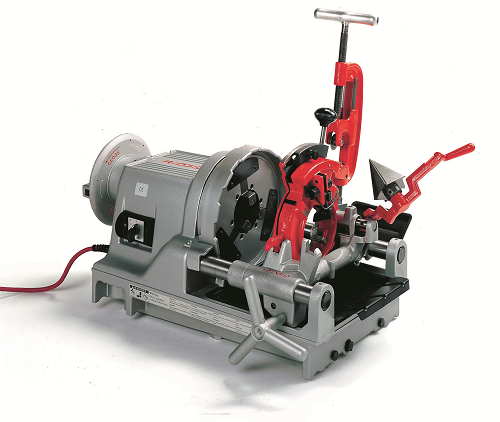

Ridgid 1233 Threading Machine 1/2 Inch to 2 Inch BSP c/w 2 Die Heads and Pipe Suppport


Ridgid

Ridgid 1233 Threading Machine 1/2 Inch to 2 Inch BSP c/w 2 Die Heads and Pipe Suppport


Ridgid 1233 Threading Machine 1/2 Inch to 2 Inch BSP C/W Die Heads and Pipe Support.
Contact Us

Ridgid 1233 Threading Machine 1/2 Inch to 2 Inch BSP C/W Die Heads and Pipe Support.

Additional Information

RIDGID

Features:

  • Threads 1/8″ – 3″ pipe at 36 RPM
  • Constant and proper lubrication of dies and workpiece with through-head oiling
  • Suitable for use with RIDGID 916, 918, and 975 Roll Groover

Specifications:

Nominal Pipe Capacity: 1/8″ – 3″ 2 1/2″ – 4″ with optional 141 geared threader
Bolt Capacity: 10mm – 52mm up to 30 Rc
Spindle Speed: 36 RPM
Motor: 1,700 W Universal
Switches: Reverse/Off/Forward, heavy duty, rotary-type plus integral footswitch
Chuck: Hammer-type with replacable rocker-action jaw inserts
Rear Centering Device: Cam Action
Oiling System: Adjustable flow; through-head, with an integal oil reservoir. Self priming, constant-flow, geroter pump.

,
