Mapress Copper Kit 5C 15-67MM

84-mapress-copper-kit-5C

Mapress Copper Kit 5C 15-67MM

84-mapress-copper-kit-5C

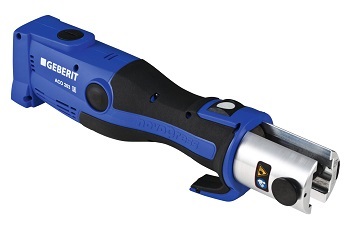

This kit comprises of a Novopress Cordless Press tool (ACO203) complete with 15-67mm jaws, collars and adaptors suitable for Geberit copper press fittings.
Contact Us

This kit comprises of a Novopress Cordless Press tool (ACO203) complete with 15-67mm jaws, collars and adaptors suitable for Geberit copper press fittings.

Features:

  • Suitable for use on Geberit Mapress Press Fittings
  • Low weight
  • Illumination of the press area
  • No limitation of the pressing cycles within the 2-year maintenance interval
  • Faster pressing cycles thanks to the Brushless Motor Technology
  • up to 40 % more pressings per battery charge
  • Analysis of the pressing tool performance via NovoCheck app

Specification:

  • Weight incl. battery: 2.8 kg
  • Length: 387 mm
  • Width: 75 mm
  • Height: 111 mm
  • Power consumption: 450 W
  • Piston force: 32 kN
  • Piston stroke: 40 mm
  • Battery: 18 V Li-Ion / 3.0 Ah
  • Battery capacity: up to 160 press cycles per battery
  • Charging time: approx. 30 – 60 min.
  • 1 x ACO203 Tool
  • 2 x 3.0 Ah batteries
  • 1 x 240v Charger
  • 15, 18 (Optional) , 22, 28, 35mm M profile jaws
  • Carry case

Please Note:

All our Novopress tools are calibrated using an 8790 presure tester and our jaws are inspected with an 31465 optical laser test rig in accordance with the manufacturers instructions.
