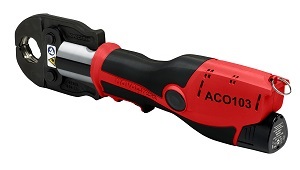

Novopress ACO103 15-35mm Press Tool

815-novopress-aco103-15-35mm-press-tool

Novopress ACO103 15-35mm Press Tool

815-novopress-aco103-15-35mm-press-tool

The ACO103 is the successor of the ACO102 and comes with additional features. The tool is suitable for dimensions up to 35 mm for metal and 40 mm for plastic. This is a compact tool which can be operated with one hand and therefore enables safe operations even in difficult installation operations. Thanks to the new, implemented bluetooth® technology, device-related data can be requested via the NovoCheck app. Enquire about this product
£1,440.97

Plus VAT

Quantity

999 in stock

The ACO103 is the successor of the ACO102 and comes with additional features. The tool is suitable for dimensions up to 35 mm for metal and 40 mm for plastic. This is a compact tool which can be operated with one hand and therefore enables safe operations even in difficult installation operations. Thanks to the new, implemented bluetooth® technology, device-related data can be requested via the NovoCheck app. Enquire about this product

Additional Information

Features:

  • Suitable for use onGeberit Mapress, Pegler Yorkshire Xpress, Sanha, M Press Fittings
  • Powerful Lithium-Ion batteries
  • Illumination of the press area
  • Automatic pressing cycle
  • One-hand operation
  • Status indication with LED display
  • Electronic bolt retention
  • Analysis of the pressing tool performance via NovoCheck app
Specifications:
Dimensions metal pipe up to 35 mm
Dimensions plastic pipe up to 40 mm
Weight (incl. battery) 1,7 kg
Length 320 mm
Width 98 mm
Height 72 mm
Power consumption 240 W
Piston force 19 kN
Piston stroke 30 mm
Battery 12V Li-Ion 1,5 / 3,0 Ah
Battery capacity 1) 40-180 Press cycles
Charging time 2) approx. 30 / 60 min.


  • 1 x ACO103 Tool
  • 2 x 1.5 Ah batteries
  • 1 x 240v Charger
  • 15, 18, 22, 28, 35mm M profile jaws
  • Carry case
