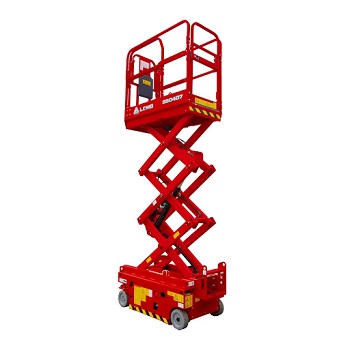

SS0407E Electric Scissor Lift


SS0407E Electric Scissor Lift


The LGMG SS Series scissor lifts offer an ideal solution for the low-level access and tight restricted application job sites. Shorter overall machine length and lighter weight makes it suitable for most elevators. Platform Capacity 240kg(530lbs) Max. Working Height 5.6m(18.4ft)

1000 in stock

Contact Us

The LGMG SS Series scissor lifts offer an ideal solution for the low-level access and tight restricted application job sites. Shorter overall machine length and lighter weight makes it suitable for most elevators. Platform Capacity 240kg(530lbs) Max. Working Height 5.6m(18.4ft)

Feautures:

  •  Battery powered, zero emission and quiet drive mean this machine is environmentally friendly.
  •  Efficient electric drive system provides longer-lasting performance and better gradeability.
  •  The zero turning radius and the light weight make this machine ideal for space restricted conditions, providing exceptional maneuverability.
  •  Exceptional waterproofed drive system design provides excellent performance in wet conditions.
  •  Commonality of control system with other electric scissor lifts.

Specifications:

Models SS0407E
Measurements
Work Height Max.   m/ft 5.6
A-Platform Height-Raised   m/ft 3.6
B-Platform Height-Stowed   m/ft 0.95
C-Platform Length    m/ft 1.35
D-Platform Width   m/ft 0.7
E-Overall Length   m/ft 1.53
F-Overall Width   m/ft 0.76
G-Overall Height-Guardrails Up   m/ft 2.06
Overall Height-Guardrails Down   m/ft 1.82
H-Extension Deck   m/ft 0.6
I-Wheelbase   m/in 1.12
Ground Clearance(Stowed/Raised)   mm/in 50/16
Productivity
Max. Platform Occupants (In / out) 2/1
Platform Capacity   kg/lbs 240
Platform Capacity-Extension Deck   kg/lbs 113
Drive Height Full Height
Gradeability-Stowed   % 25
Turning Radius-Inside 0
Turning Radius-Outside   m/ft 1.5
Raise/Lower Speed  s 25/20
Brakes  Front-wheel Brake
Drive Mode 4×2
Tires Type Solid Non-marking
Tires Size   mm/in 230×80
Power
Power Source  24V DC 115Ah
Hydraulic System
Hydraulic Oil Capacity    L/gal 4.5
Weight
Machine Weight(CE)   kg/lbs 880
