Mapress Steel Kit 8C 67-108MM

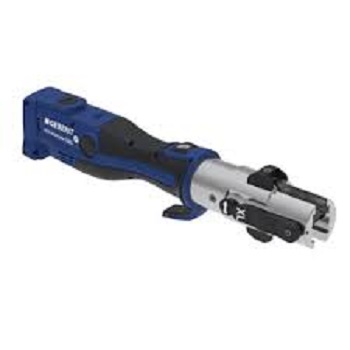

This kit comprises of a Novopress Cordless press tool (ACO203XL) complete with 67-108mm collars and adaptors suitable for Geberit Carbon and Stainless Steel press fittings.
- Suitable for Geberit Mapress Press Fittings
- Lighter and handier*
- 12-108 mm with only one pressing tool (all materials)
- 40 % more pressings per battery charge*
- Rotatable head
- Back stroke limitation – fast pressing with compatible jaws by an adaptable piston stroke
- Less need for maintenance due to new motor technology
- Thanks to the new, implemented wireless technology on ACO203, device-related data can be requested via the NovoCheck app.
- Dimension Metal: up to 108 mm
Piston force: 32 kN
Piston stroke: 80 mm (optionally 40 mm)
Weight: 4.6 kg (inkl. Akku)
Length: 487 mm
Width: 79 mm
Height: 116 mm
Power consumption: 450 W
Battery:18 V Li-Ion 3,0 Ah
Battery capacity: up to 180 Press cycles
Charging time: approx. 60 min1 x ACO203XL TooL2 x 3.0 Ah batteries
1 x 240v Charger
1 set of 15, 18 (Optional), 22, 28, 35mm M profile jaws
All our Novopress tools are calibrated using an 8790 presure tester and our jaws are inspected with an 31465 optical laser test rig in accordance with the manufacturers instructions.
